Laminate Technical Features
Technical Flooring Resources for Architects, Designers and Installers
We provide easy access to all the technical documents, installation instructions, and specification sheets you need to ensure a flawless finish. Explore our advanced locking mechanisms and system technologies below.
Laminate Flooring Technical Systems
Specify with confidence using FINfloor’s complete laminate flooring technical library. Review and compare each range by abrasion class, use class, board thickness, locking technology, edge profile, moisture resistance and installation requirements.
Below, architects, interior designers, specifiers and contractors can download our latest technical specification sheets, installation guides, warranty and maintenance documents, as well as Revit and BIM files for accurate project specification, detailing and professional installation.

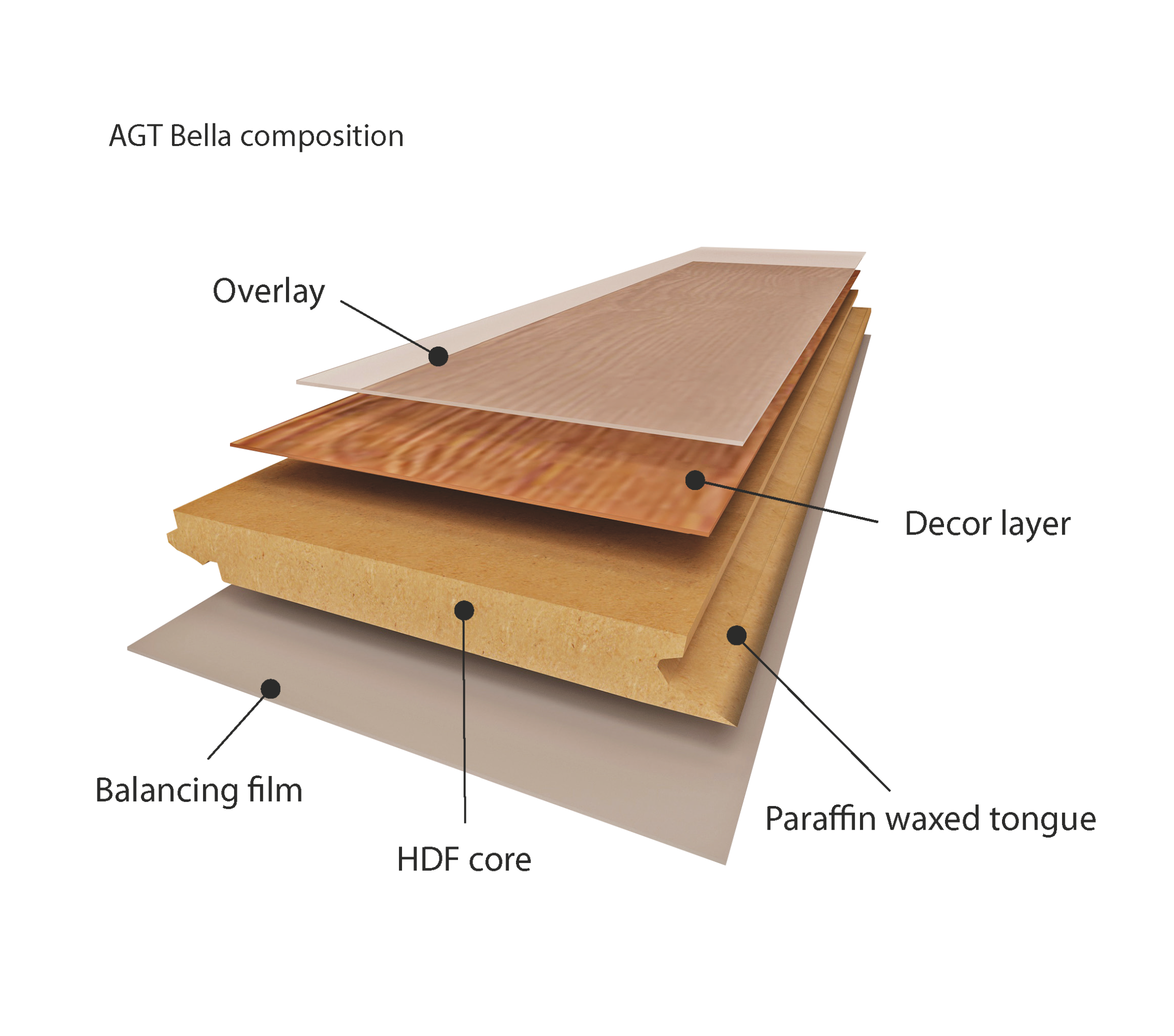

AGT BELLA NEO
Laminate AC3
8 mm AC3 laminate with timber décors, Unilin L2C locking, a low-swelling core and 24-hour topical water resistance.

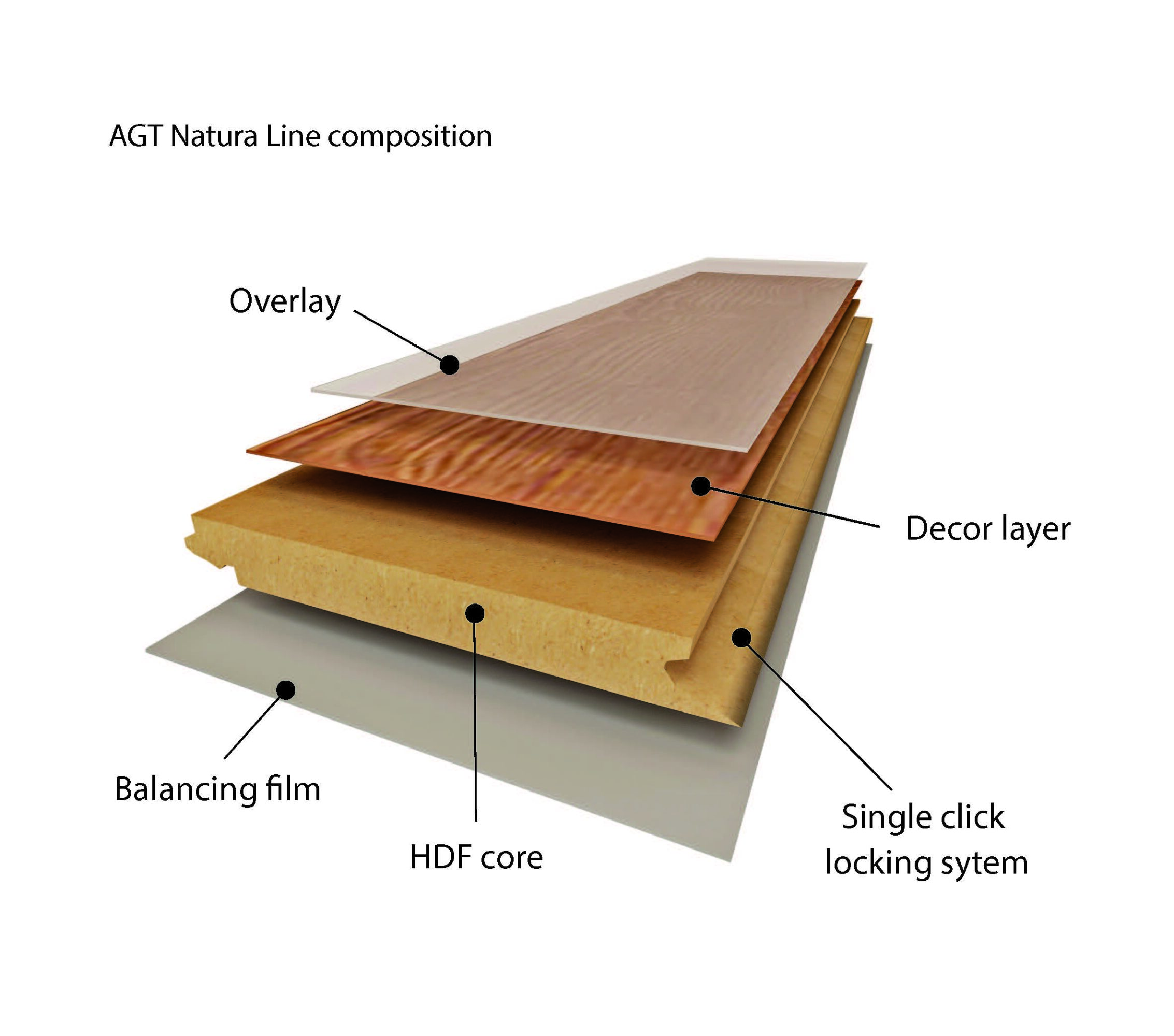

AGT NATURA LINE
Laminate AC4
8 mm AC4 laminate with timber décors, V4 bevelled edges, paraffin-waxed joints and 24-hour topical water resistance.

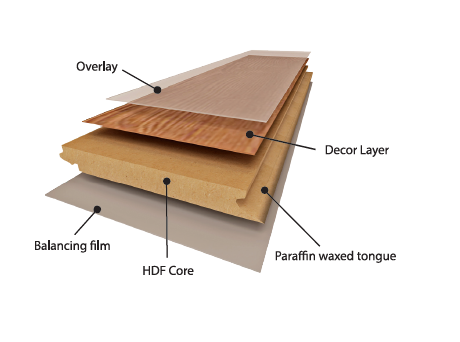

AGT ARMONIA
Laminate AC4 · Large Format
8 mm AC4 wide-plank laminate with V4 bevelled edges, Unilin L2C locking and 24-hour topical water resistance.

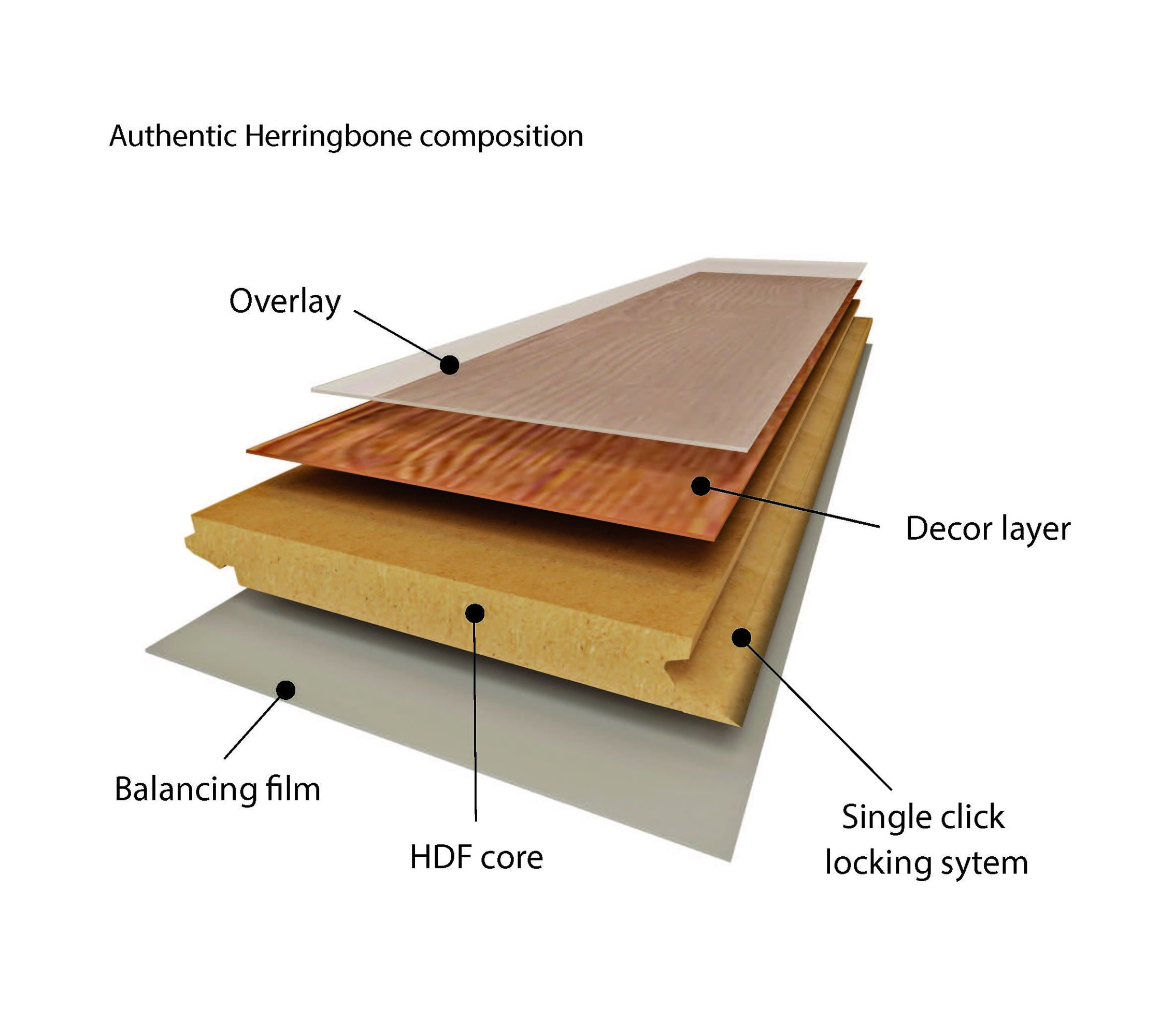

AUTHENTIC HERRINGBONE
Laminate AC4
12 mm AC4 laminate combining authentic timber styling, click installation and a timeless herringbone floor pattern.

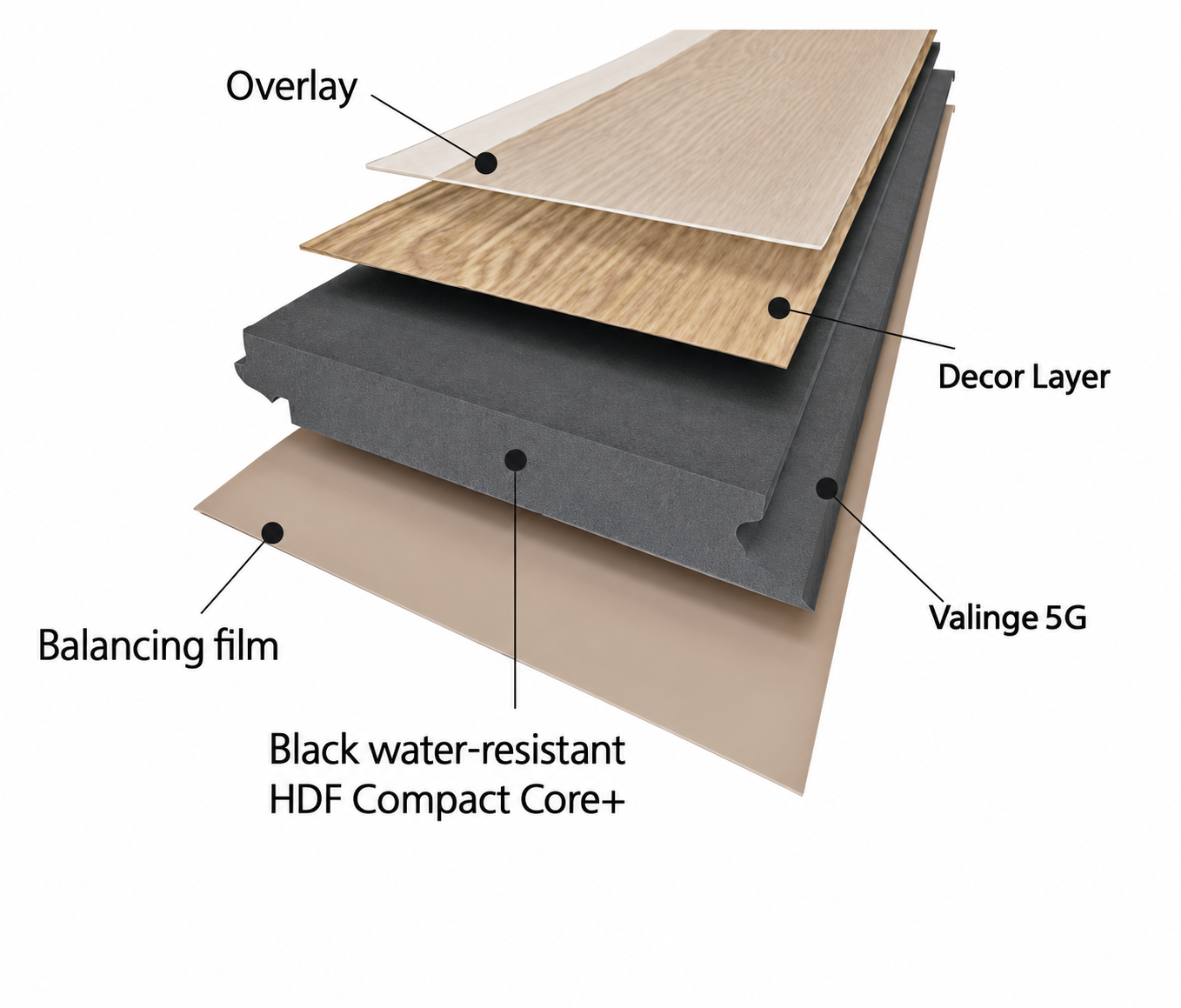

Black forest+
Commercial Laminate AC5
12 mm AC5 commercial laminate with a high-density black core, strong impact resistance and 72-hour water resistance.

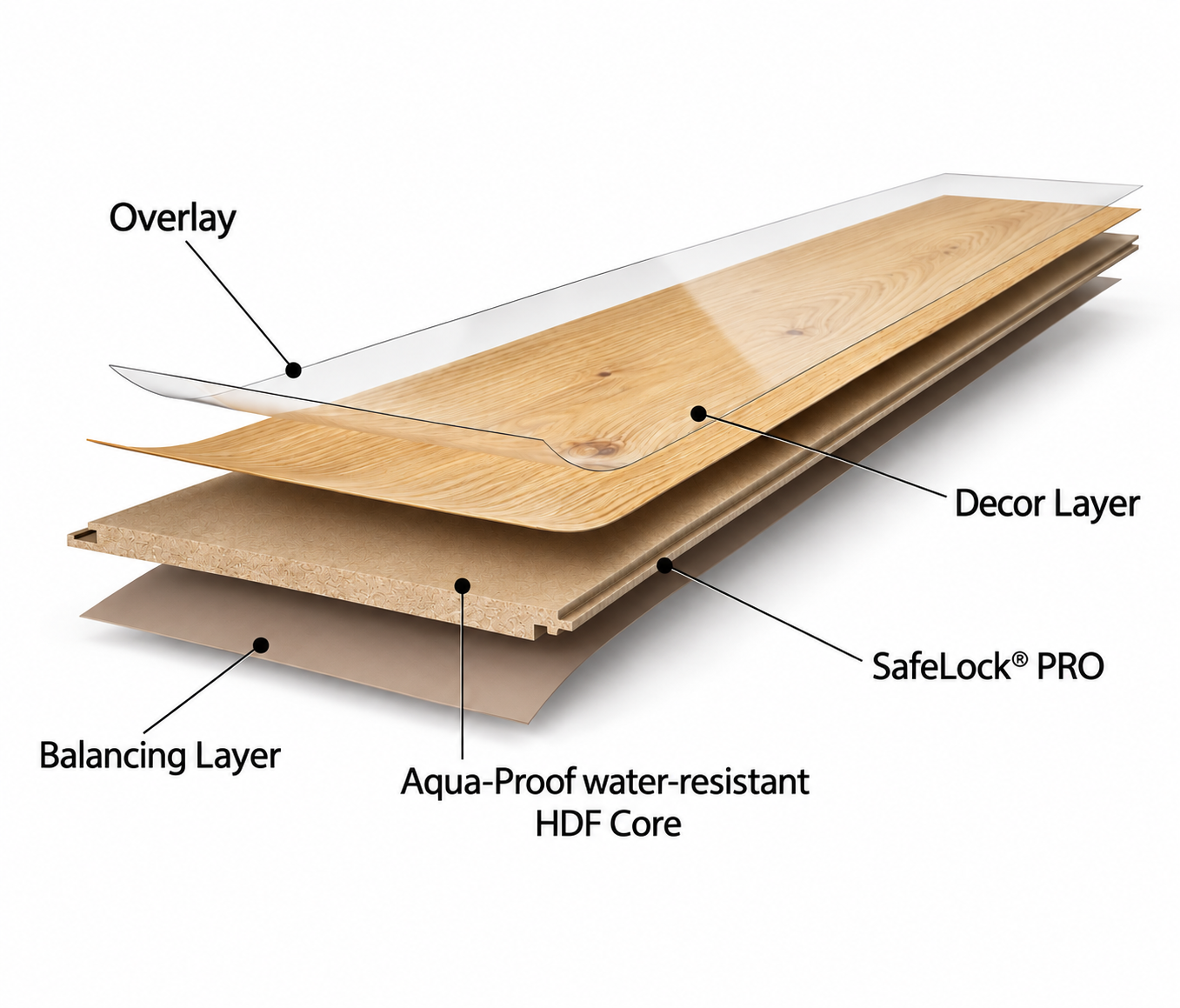

Parador
9 mm AC5 premium laminate with SafeLock PRO, Aqua-Proof technology and up to 48-hour standing-water resistance.
How to Specify Laminate Flooring
Choosing laminate flooring should involve more than selecting a colour or wood design. A professional laminate flooring specification should consider abrasion resistance, use classification, board thickness, core construction, moisture resistance, locking system, edge profile, underfloor heating compatibility and warranty requirements.
| Technical Criterion | What to Check | Why It Matters |
|---|---|---|
Abrasion Class | Check the laminate flooring’s AC rating, such as AC3, AC4 or AC5. | Abrasion Class indicates resistance to surface wear and helps determine whether a laminate floor is appropriate for the expected level of traffic. |
Use Class | Check the product’s residential or commercial use classification, such as W31, W32 or W33, where applicable. | Use classification helps match the laminate floor to its intended residential or commercial application and expected traffic level. |
Board Thickness | Review the overall laminate plank thickness in millimetres on the relevant product specification sheet. | Board thickness influences the product profile, floor build-up, installation planning and the overall feel of the finished floor. |
Core Construction | Review the HDF core type, construction and any stated moisture-resistant technology. | Core construction contributes to the strength, dimensional stability and moisture performance of laminate flooring. |
Moisture Resistance | Check the manufacturer’s stated moisture performance, exposure period, installation requirements and product limitations. | Moisture performance differs between laminate flooring products. Water-resistant does not automatically mean waterproof, so the documentation for the selected range should always be reviewed. |
Locking System | Check the click profile, locking technology and approved installation method for the selected laminate flooring range. | The locking system affects joint security, installation efficiency and the stability of the completed floor. |
Edge Profile | Determine whether the selected laminate flooring has a square edge, V2 or V4 bevel. | Edge profiles influence the finished appearance and the visual definition between individual laminate planks. |
Underfloor Heating | Confirm manufacturer approval, temperature limitations, underlay requirements and installation conditions. | Compatibility should be assessed across the complete flooring system, including the laminate, underlay, subfloor and heating system. |
Warranty | Review residential and commercial warranty periods, exclusions, installation requirements and maintenance conditions. | Warranty terms help confirm whether the selected laminate flooring is appropriate for the intended application. View FINfloor laminate warranty information . |
Before Specifying a Laminate Floor
Always review the selected product’s technical specification sheet, installation guide, warranty and maintenance instructions before finalising the flooring specification. This helps ensure that the selected laminate flooring system is appropriate for the application, expected traffic and installation conditions.
What Should You Consider When Choosing Laminate Flooring?
Laminate flooring ranges can look similar at first glance, but their technical performance can differ considerably. Colour and décor should therefore not be the only factors considered when comparing laminate floors. Product construction, abrasion resistance, use class, moisture performance and installation requirements should all form part of the selection process.
For architects, interior designers, developers, contractors and homeowners, understanding these specifications makes it easier to select laminate flooring that is appropriate for the intended space. The requirements of a low-traffic residential bedroom, for example, may differ considerably from those of an office, retail environment or other commercial application.
Understanding AC Ratings for Laminate Flooring
The AC rating is one of the most commonly referenced laminate flooring specifications. AC refers to abrasion classification and provides an indication of the floor surface’s resistance to wear. Common classifications include AC3, AC4 and AC5.
A higher AC classification indicates increased resistance to abrasion, but an AC rating should not be viewed in isolation. The product’s complete use classification, intended application, technical specification and manufacturer recommendations should also be considered.
Explore the FINfloor laminate flooring collection to compare laminate flooring options for different residential and commercial applications.
Residential vs Commercial Laminate Flooring
Use classifications help identify the environments for which a laminate flooring product has been designed. When specifying laminate flooring for a commercial environment, it is particularly important to confirm that the product classification and warranty are suitable for the expected traffic and intended use.
The best laminate flooring specification therefore balances visual design requirements with the technical performance required over the expected service life of the floor.
Why Moisture Resistance Matters in Laminate Flooring
Modern laminate flooring can offer enhanced resistance to moisture, but moisture performance differs between products and ranges. Specifiers should check how the manufacturer defines its moisture-resistant technology, the stated exposure period, installation requirements and any limitations relating to use.
This distinction is important because terms such as water-resistant and waterproof should not automatically be treated as interchangeable. Always refer to the technical information supplied for the individual laminate flooring range.
Consider the Complete Laminate Flooring System
The laminate plank itself is only one component of a successful flooring installation. Subfloor preparation, underlay selection, expansion requirements, locking systems, perimeter clearances, flooring profiles and installation conditions can all influence the performance of the completed floor.
Correct specification and installation should therefore consider the entire flooring system rather than the laminate plank in isolation.
Specify FINfloor with Confidence
FINfloor provides detailed product information for its laminate flooring ranges, helping architects, interior designers, specifiers, contractors and professional installers make informed flooring decisions.
When evaluating a FINfloor laminate flooring range, consider the complete product specification together with the installation, warranty and maintenance requirements.
Product Specifications
Review product dimensions, construction, classifications and performance characteristics.
Installation Requirements
Consider subfloor preparation, installation method, expansion requirements and finishing details.
Warranty
Check residential or commercial cover, conditions, exclusions and intended application.
Care & Maintenance
Follow appropriate cleaning and maintenance guidance to support long-term flooring performance.
Professional Specification
Match the flooring system to the traffic level, environment and requirements of the project.
With comprehensive product information and professional support, selecting and specifying the correct FINfloor laminate flooring system is simpler, more accurate and gives you greater peace of mind.
